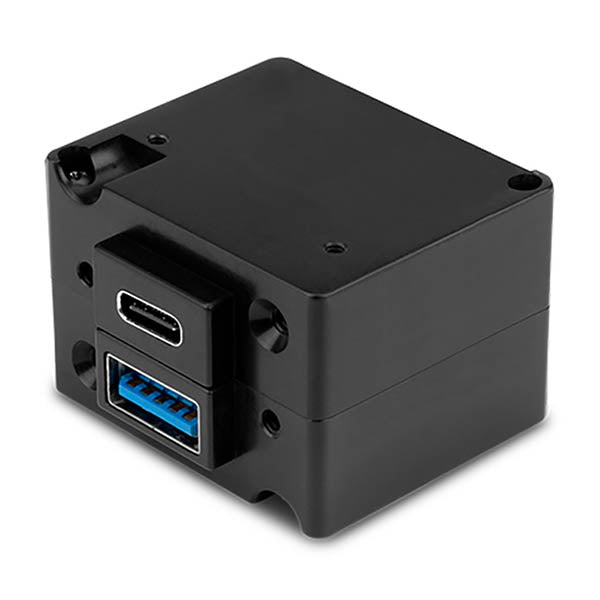

True Blue Power Dual USB Rear Input Charger

Overview

The high-powered TA202 Series USB Charging Port simultaneously provides 3 amps per port. Offering an extensive list of USB Type-C and Type-A configurations, the TA202 powers the next generation of electronic devices.

The extremely compact and TSO-certified, TA202 Series is the newest addition to the True Blue Power family of USB chargers. The versatile in-seat, cabin and cockpit power source offers single and dual port, USB Type-C and Type-A configurations.

Requiring no bulky, external power converters for 10 – 32 VDC installations, the TA202 delivers all the power you need in a small, economical, easy-to-install package.

Features

  • Output Current: 3.0 amps per port
  • Input Voltage: 10 – 32 VDC
  • Output Voltage: 5 VDC ± 0.25 per port
  • USB Connector: Type-A and/or Type-C; single and dual configurations
  • Efficiency: Charge one or two products simultaneously at full power
  • Protection: Short circuit, over-current and over-temperature protection
  • Applications: In-seat, cabin and cockpit mount
  • Designed and Manufactured: Wichita, Kansas, USA
  • Warranty: Two-year limited

Specifications

Input Voltage: 10 – 32 VDC
Input Power: 18 W max per port
Output Voltage: 5 VDC ± 0.25 per port
Output Current: 3.0 amps per port
Usb Connector: Type-A and/or Type-C; single and dual configurations
Weight: 0.8 ounces (23 grams) Single port 1.3 ounces (38 grams) Dual port
Dimensions: 1.5” W x 0.52” H x 1.25” D Single port 1.5” W x 1.03” H x 1.25” D Dual port
Mating Connector Kit: MCI P/N 9017960 (included)
Mounting: In-seat, cabin, cockpit; front or rear mount Optional front mount kit

(MCI P/N 9017897; dual port only)

Optional instrument mount kit

(MCI P/N 9017947; dual port only)
Certification: FAA TSO C71 certified

RTCA DO-160G qualified
6,125 SEK
6,125 SEK
6,125 kr item
Skatt ingår. Frakt beräknas i kassan.
Tillgänglighet: Låg lagernivå: 1 kvar
Artikelnr: 11-14397
6,125 SEK
6,125 SEK
6,125 kr item

Om du har specifika frågor om den här Produkten. Tveka inte att kontakta oss och fråga. Vi har passionerade Flygentusiaster som kan svara på det mesta.
