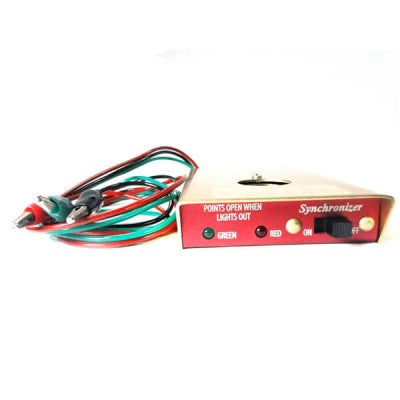

Magneto Timing Lights / Synchronizers

These devices measure the change in inductance in the magneto coil when the points open and close. Simply shorting the clip leads together will not indicate a point closing, therefore eliminating any false reading caused by loss of contact to the magneto grounding terminal. To use, simply remove one plug from each cylinder. Connect black clip lead to engine ground. Connect red and green leads to right and left magneto terminals. Turn propeller slowly. When the points open the L.E.D.s will turn off and the audio "tweeter" will sound. The magneto connected to the red lead will sound a rapid beat and the magneto connected to the green lead will sound a slower beat. When both sets of points are open, a third and continuous sound will be emitted. Adjust magneto timing accordingly.

100% solid state, compact 3/4" x 3" x 5" size, long battery life. Color coordinated leads are 4 ft. long. Comes in strong anodized aluminum case. Also available for single magnetos and without tweeter. The single timer is more expensive now because it is a new, updated version or style. This is a deluxe style with tweeter that has a sound system and 4 foot leads.
