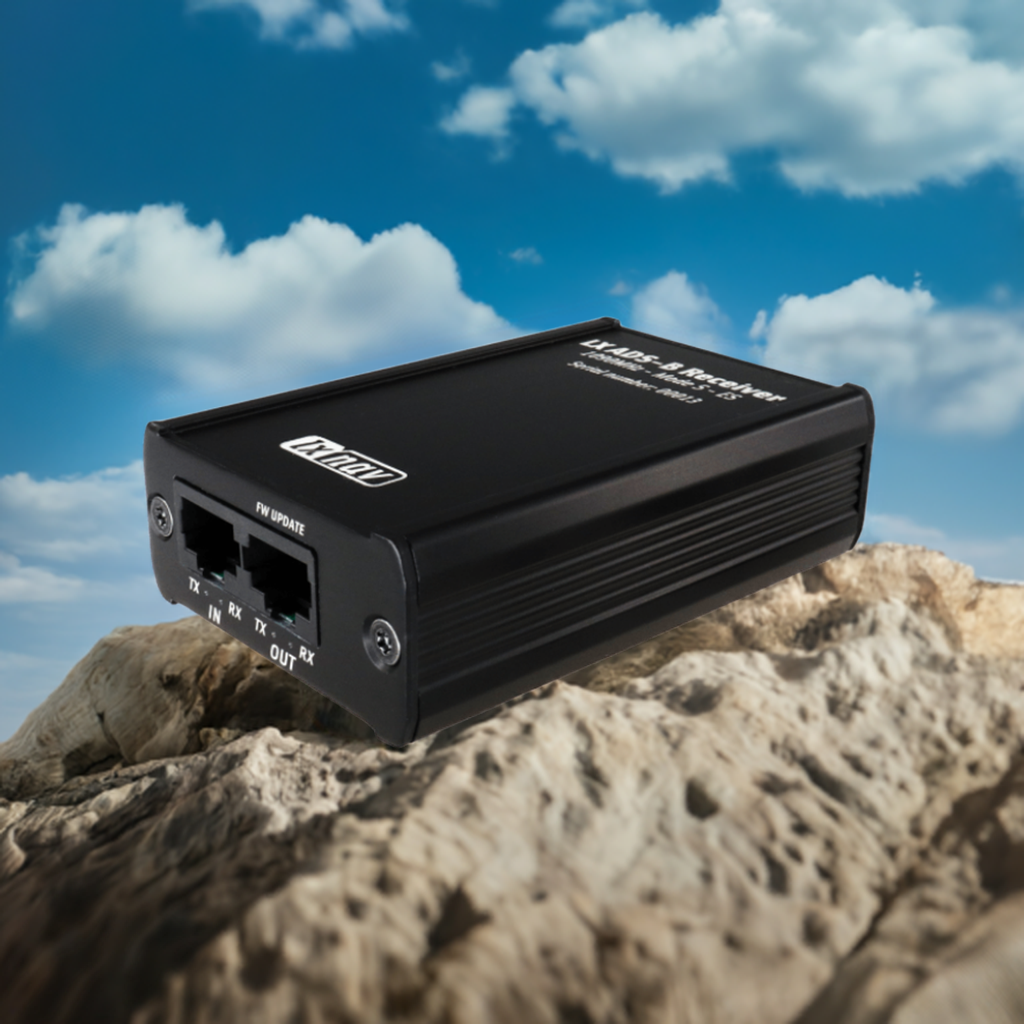

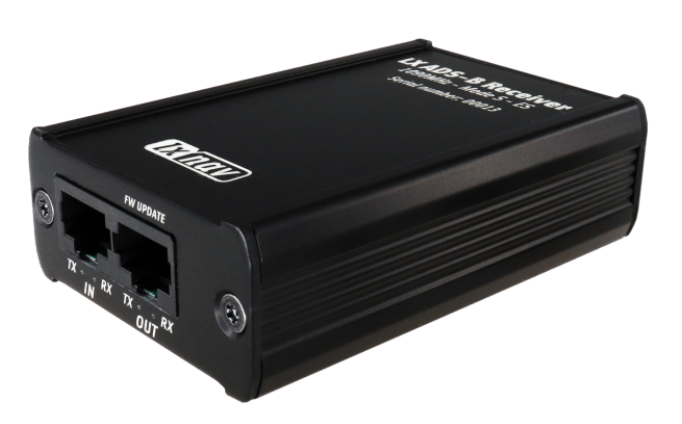

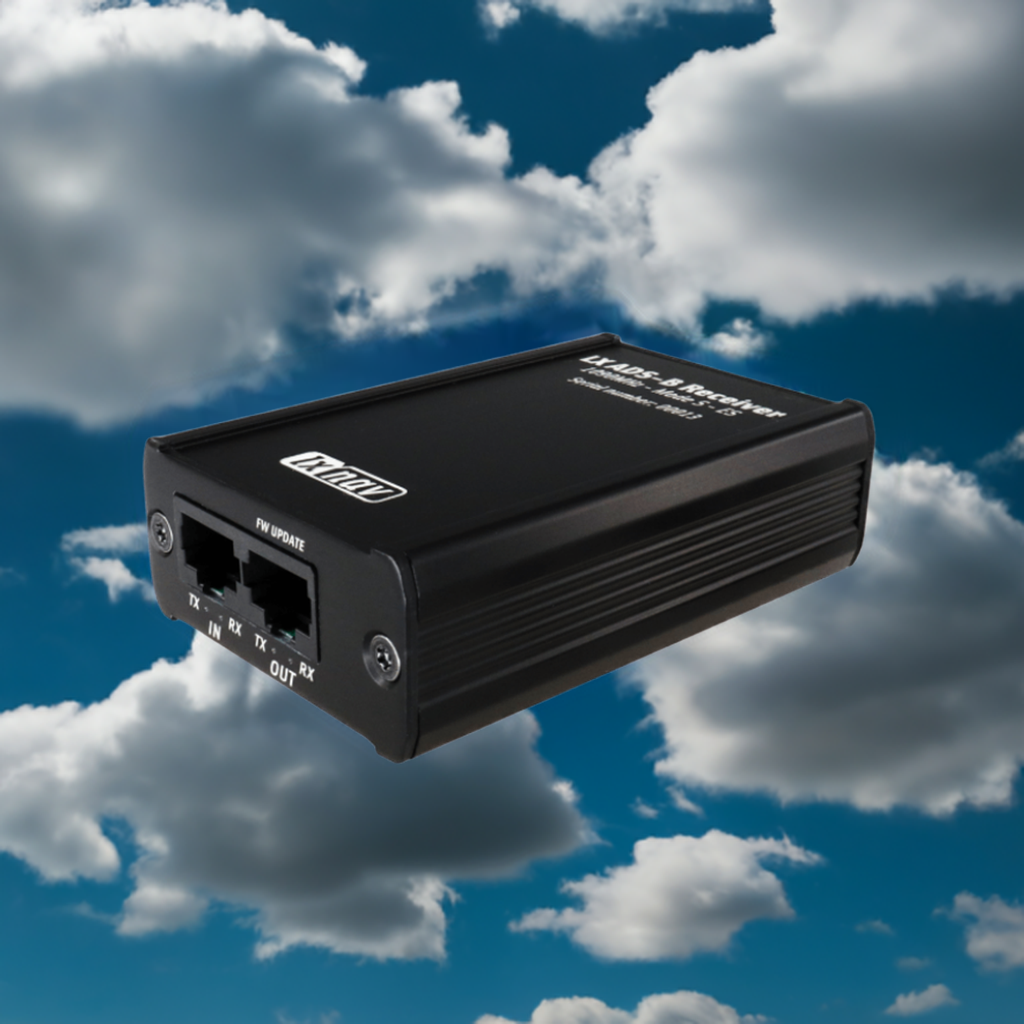

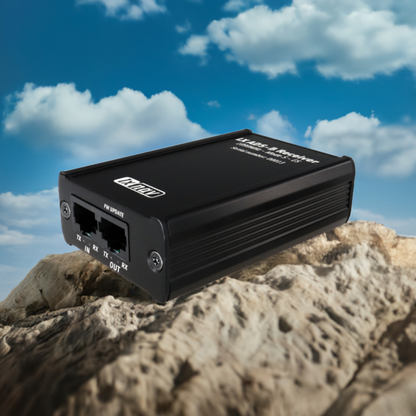

ADS-B receiver LXNAV (external)

A practical standalone ADB-S solution. ADBS-S receiver listens to Mode S and ES data from all standard transmitters. Data can be displayed to any standard FLARM display via output port in FLARM standard NMEA format.

ADB-S. Simple. Practical.

ADBS-S receiver is built on basis of the proven PowerMouse design that allows easy installation and easy integration with existing systems like Flarm displays. ADB-S receiver requires a GPS feed input in standard NMEA format.

9 488 SEK
9 488 SEK
Tax included. Shipping calculated at checkout.

Ex Vat

(7 590 SEK)
Availability: In stock
SKU: ADSB-standalone
Tags:
Collections:
9 488 SEK
9 488 SEK

Software

ADS-B (mode S) receiver
Expandable to all standard FLARM displays (3V and 12V)
Input and output

Input voltage 8-36 VDC
Consumption 0.85 W


Hardware

2 RJ45 connector

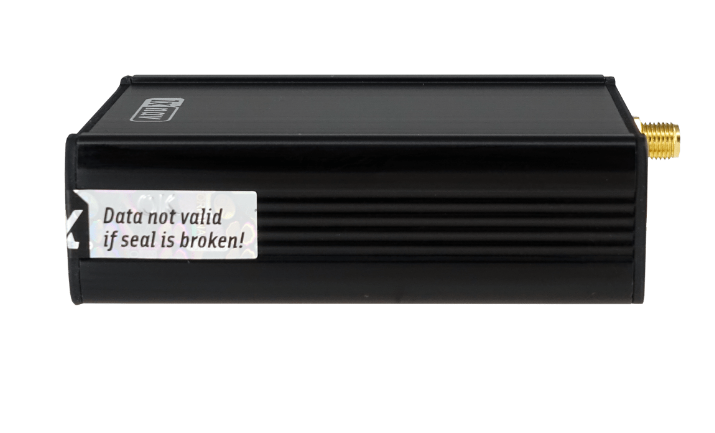

SMA Antenna connector
ADS-B Antenna


Size and weight

90mm x 55mm x 25mm
160 grams
