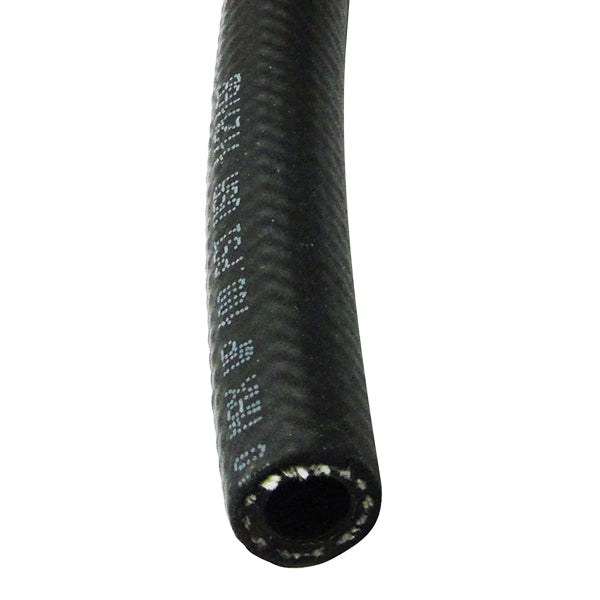

Parker Super-Flex 397 Series Fuel Line Hose
Parker's fuel line hose includes a thermoplastic barrier that helps protect the atmosphere from harmful hydrocarbons that escape through the carcass of ordinary fuel hose. This hose surpasses all of CARB's stringent permeation requirements and is similar to SAE30R7 specifications. The Super-Flex FL hose also features an abrasion and weather resistant cover to help protect from external application abuse.
Sold per feet.
Approved for biodiesel fuels that meet ASTM D 6751 requirements per UL guidelines for Biodiesel compatibility.
4:1 Design factor
- Tube: NBR with a thermoplastic barrier
- Cover: Black Hypalon
- Reinforcement: Braided Polyester
- Temperature Range: -30°F to +257°F (-34°C to +125°C)
| PN |
ID (in.) |
Reinf. Braids |
OD (in.) |
Approx. Weight per 100 ft. | Min. Bend Radius | Max Rec. WP |
|---|---|---|---|---|---|---|
| 05-03597 | 1/4 | 1 | 0.500 | 9.7 | 1.5" | 100 |
| 05-03598 | 3/8 | 1 | 0.625 | 1.30 | 2.5" | 100 |
| 05-07223 | 5/16 | 1 | 0.562 | 11.3 | 2" | 100 |
