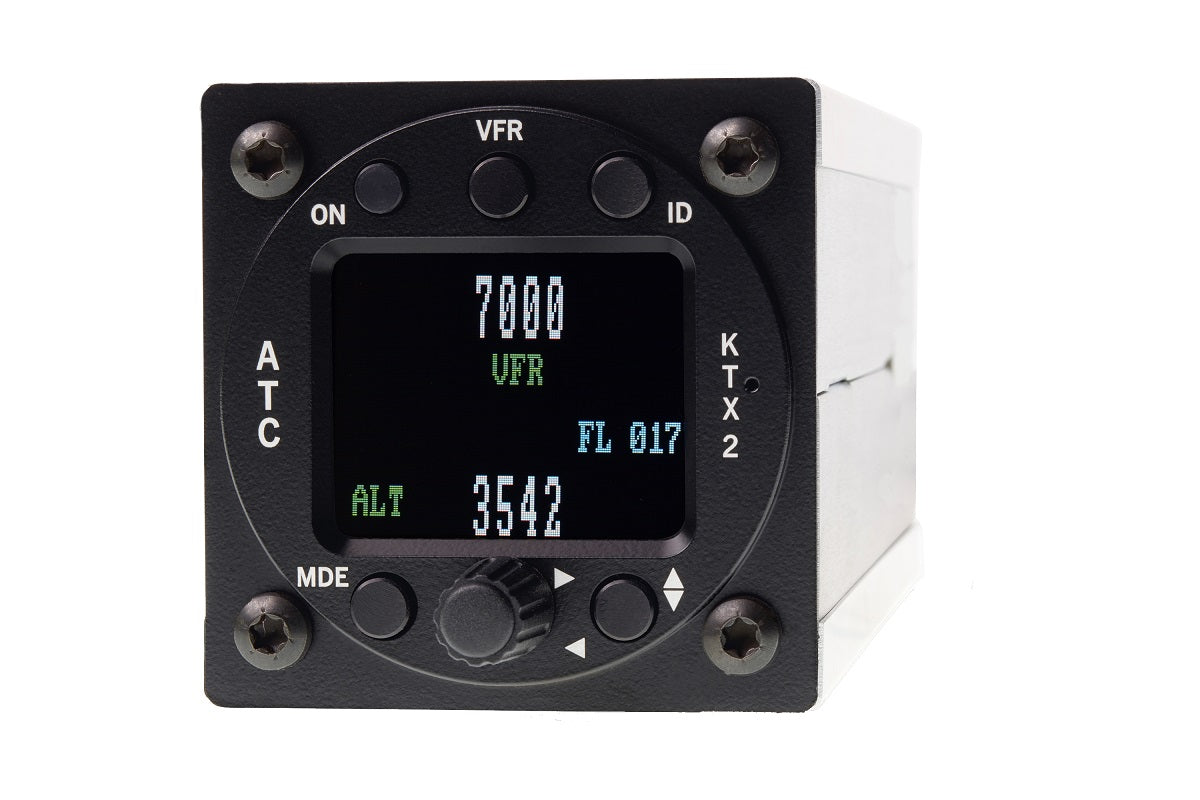

KTX2.V2-transponder

The newly developed and certified Mode-S KTX2 aircraft transponder is light, compact and suitable for ADS-B, has low power consumption, an integrated height encoder and a high-quality TFT colour display. As a Class 1 transponder with an operating range of up to 30,000 ft and 250 kt, it is ideal for GA aircrafts and gliders, UL and experimental aircraft, as well as balloons.

• Minimum weight (Standard: approx. 380 g)
• Compact design (Standard: 63 x 62 x 149 mm)
• Mode S, Class 1
• Intuitive operation
• High-contrast TFT color display for brilliant legibility
• Minimal power consumption
• Integrated height encoder
• Simplest installation
• Max. operating height 30,000 ft

The advantages at a glance

• Intuitive operation - developed by pilots for pilots
• Better visibility under bright sunlight thanks to transflective display

• For use in multiple aircraft different setups can be saved.
• Integrated altitude encoder
• Antenna loop-through - no extra antenna required for any ADS-B In hardware
• Minimal power consumption
• Excellent price/performance ratio - made in Germany
