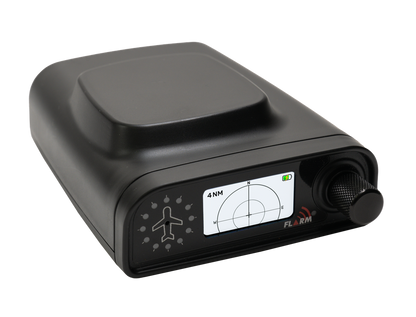

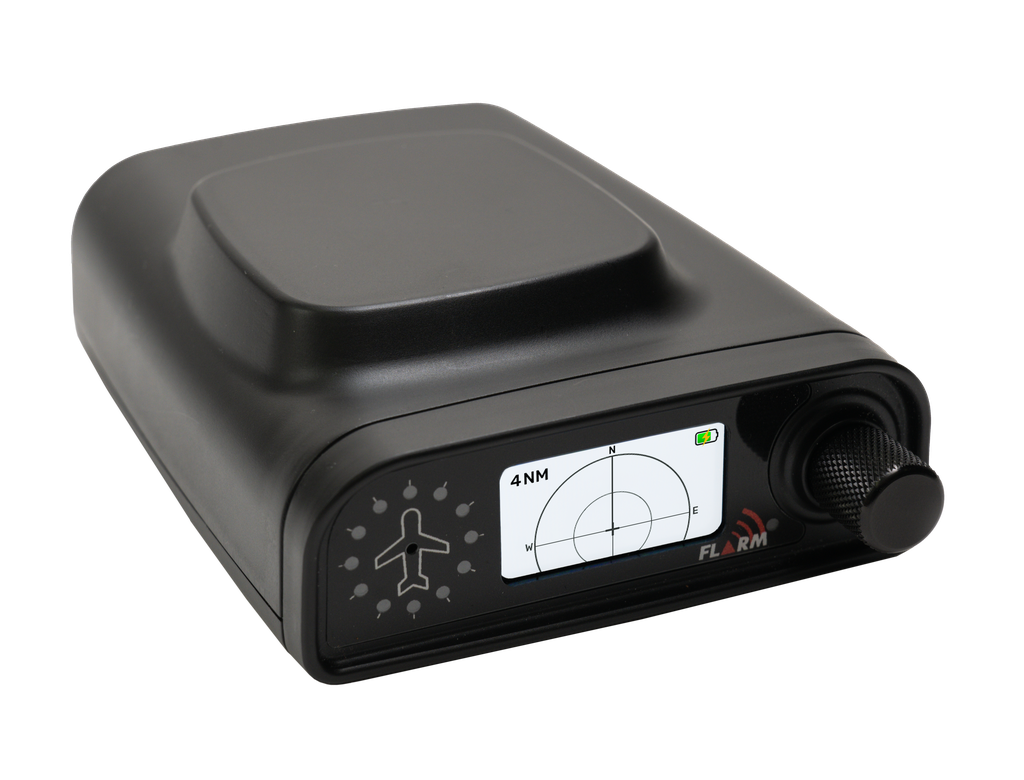

PowerFLARM Flex

PowerFLARM Flex
Maximum Performance, Zero Installation

Introducing PowerFLARM Flex — the new mobile FLARM device
designed for all types of manned aviation. Whether you‘re
replacing an old Classic device or looking for a portable solution
for powered aircraft or helicopters, PowerFLARM Flex is
the perfect choice.
Perfect Visibility

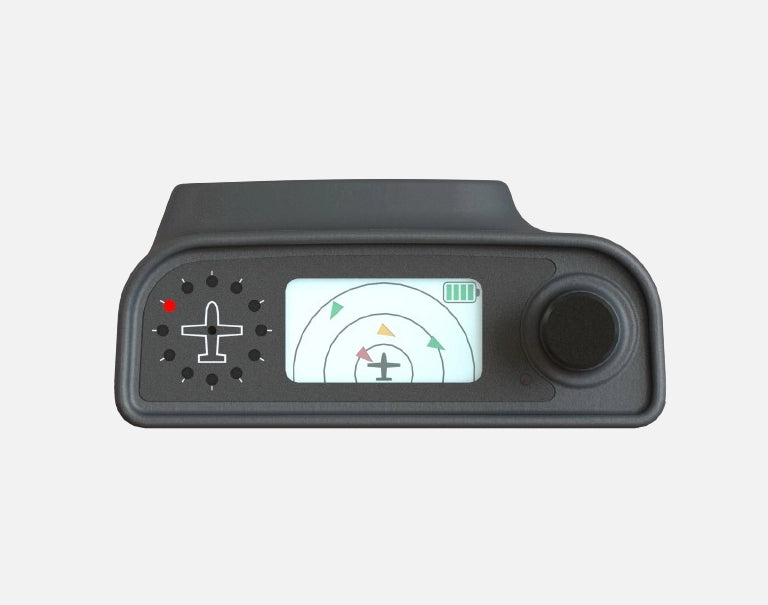

Our revolutionary hybrid display ensures optimal readability
in all lighting conditions. The proven directional display with
super-bright LEDs remains easily visible even in sunlight
and automatically dims at night to prevent dazzling the pilot.
The bright 1.47-inch LCD provides additional information about
nearby aircraft and allows for user-friendly configuration.
Operating it via the rotary control is straightforward.
Installation? Not Necessary!

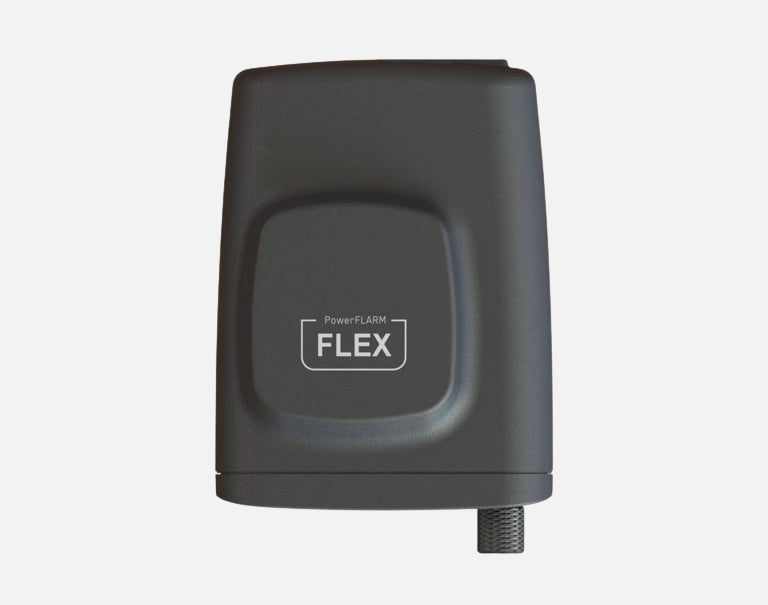

Say goodbye to fiddling with cables — all antennas are fully
integrated into the housing. Our patent-pending FLARM
antenna, developed and optimized using advanced numerical
engineering methods, provides excellent range in all directions.
PowerFLARM Flex receives all relevant signals and is so compact
that it fits easily on any instrument panel.
Full Autonomy
Experience full autonomy with a Li-Ion battery in the common
18650 form factor (not included), providing up to 10 hours of
runtime. Need more? The battery can be replaced even during
flight. Charge via a 5 V USB-C charger or a 12 V power supply.
PowerFLARM Flex can also operate without a battery.
The Perfect Replacement for Classic
PowerFLARM Flex is uniquely suited to replace old F5 and
F6 Classic installations. It´s only slightly larger, uses the
same RJ 45 cable, but offers much more functionality and
significantly better range.
Everything, Better.
PowerFLARM Flex comes with a range of software improvements.
InstaCARP is our new method of measuring range
performance, providing results within minutes of flight. The
1090 MHz receiver now also supports Mode-C signals. Our
completely overhauled flight recording system uses a dedicated
crypto chip for impenetrable security (IGC certification
pending).
Product Highlights
PowerFLARM Flex
Maximum Performance, Zero Installation
• Complete FLARM solution in one package
• Up to 10 hours of autonomy
• Hybrid LCD/LED display for optimal readability in all conditions

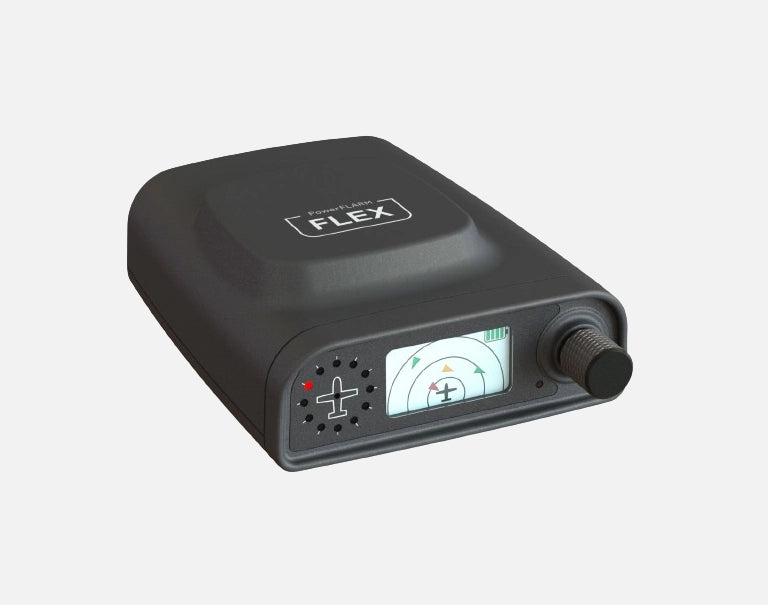

• Low-profile design fits on any instrument panel
• Integrated antennas — no external cables needed

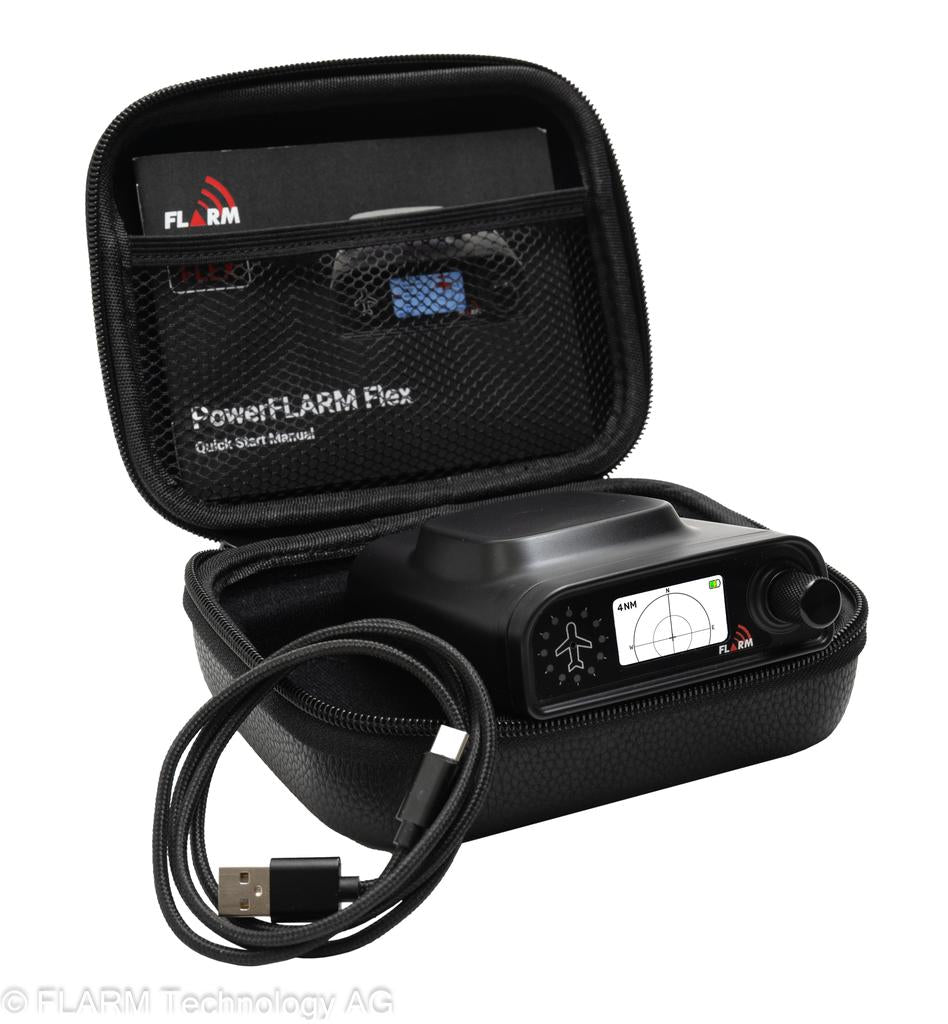

• Portable — easily move it between aircraft
• AMPS 2-hole mounting pattern for use with RAM mounts
• Compatible with FLARM Hub app (iOS/Android)
• Supports connection to EFBs running on different several
platforms via Wi-Fi and Bluetooth LE
