FUNKE
Mode S Transponder

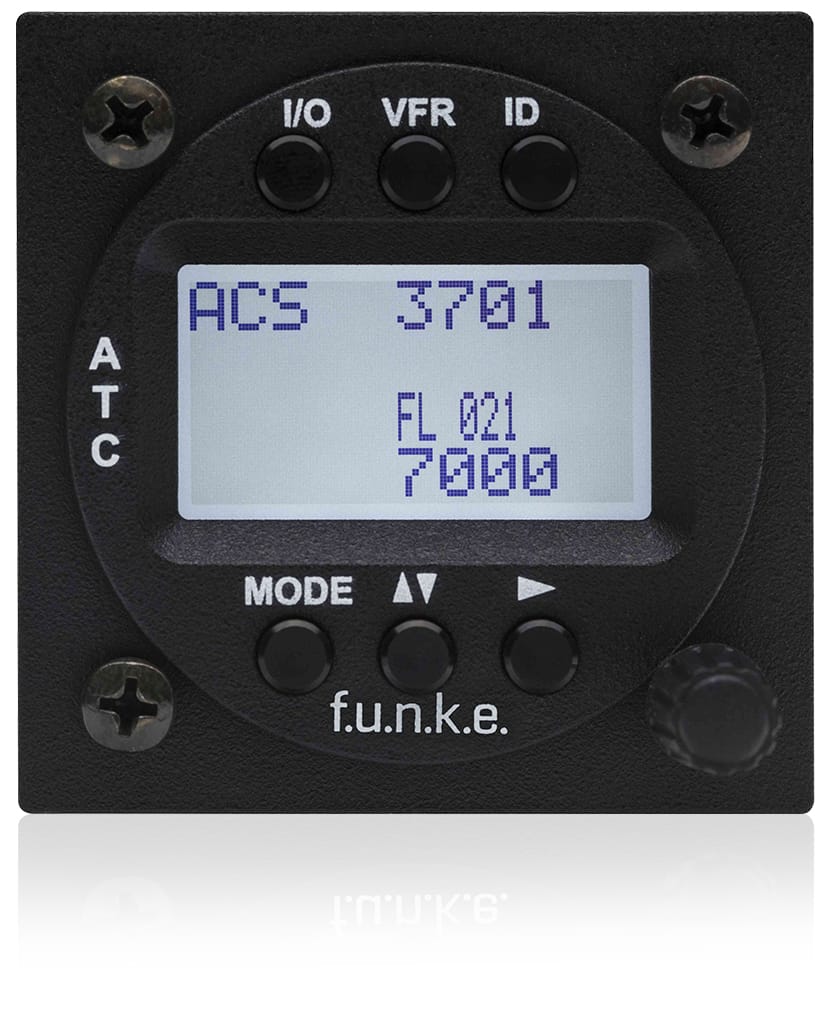

Our Mode-S Transponder product family TRT800 is well placed on the market for General Aviation. The Mode S standard covers further information besides the ICAO-Code and offers the possibility to broadcast as well GPS based position data. Several thousands of TRT800 transponders have been installed in General Aviation aircraft in Europe in the meantime. The TRT800H is a standard transponder in 57 mm housing for all applications in general aviation from ultralight aircraft to gliders and piston engine aircraft. It can be delivered either with OLED or LCD display. The TRT800A offers the standard 161mm housing which is ideally suited for the easy replacement of existing transponders like the Kt76 or similar (only with OLED display available).
- Full featured, EASA/FAA certified Class 1 transponder and certified for VFR and IFR operation
- 4-line LCD display shows active and stand-by code, operating mode, flight level and flags
- Remote Control Unit TRT800RT available
- Operating Modes: Mode A/C, Mode S
- Extended Squitter, connection to GPS receiver with adapter cable, ADS-B ready (certification in accordance with ETSO-C166b pending)
- Integrated altitude encoder up to 35,000 ft
- Configurable energy saving mode especially for gliders
- Mitgelieferter Flugzeug-Adapter für die Einstellung der 24-bit ICAO-Adresse, Flugzeugtyp und Flugnummer (benötigt für Mode S Betrieb), 8 verschiedene Datensätze speicherbar
Det gick inte att ladda hämtningstillgänglighet
Om du har specifika frågor om den här Produkten. Tveka inte att kontakta oss och fråga. Vi har passionerade Flygentusiaster som kan svara på det mesta.
